Industrial sectional door introduction:
Industrial Sectional doors, also known as industrial sliding doors and segmented lifting doors, are suitable for exterior and interior doors of a variety of buildings. They are integrated through torsion spring tension balance, pulley sliding rail sliding, frequency conversion intelligent control system, and electric control. Operating system: It can customize more than 6 ways of lifting operation according to the installation environment. The 40mm thick high-density polyurethane foam door panel has both thermal insulation and impact resistance.
The main technical parameters:
product name | Industrial Sectional door |
Custom size | The maximum can be W10000mm*H10000mm. |
Switching speed | 0.2-0.3m/s, (customized faster speed can reach 0.7m/s). |
Door material | The door is made of 0.4mm thick galvanized color steel plate, and the surface is treated by roller coating. The total thickness is 42mm and the height is 500mm. |
Door color | Conventional is double-sided white (RAL9002), other colors can be customized according to the RAL color card. |
Electric control system | German FROG PUPIL (Philippines) brand special frequency conversion motor for industrial doors. |
voltage | 220-380v, 0.75-1.5kw, 50hz. |
Turn on frequency | It is recommended that within 20 times/day. |
safety protection | It is equipped with a wire rope breaking device, a bottom airbag device, and a torsion spring anti-breaking function. |

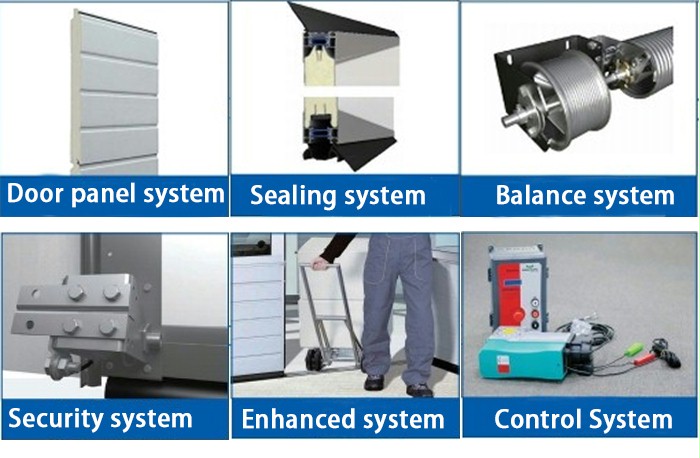

6 major systems of industrial sectional doors:

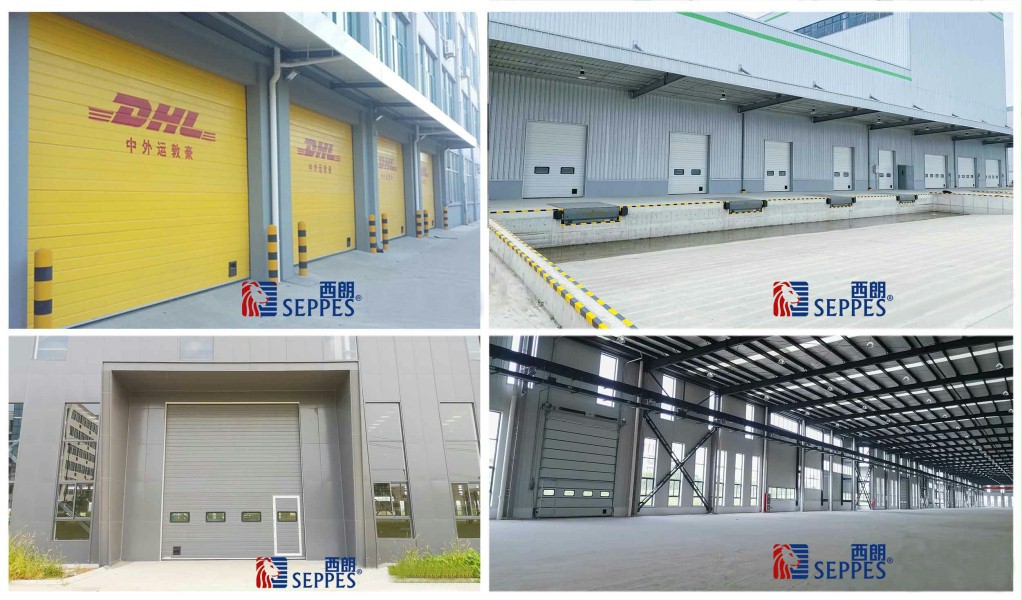

Industrial Sectional door application area:

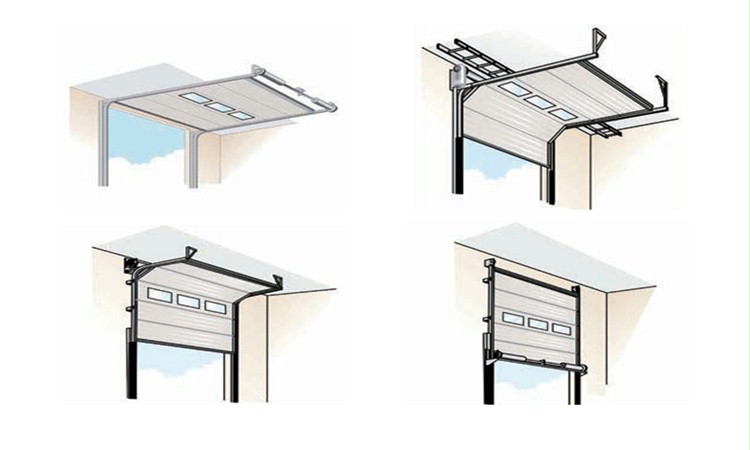

Various customized solutions for industrial sectional door:
Comparison of advantages of industrial sectional doors:
Part of cooperative customers: 1800+ customers' choice:
Customer visit display:
