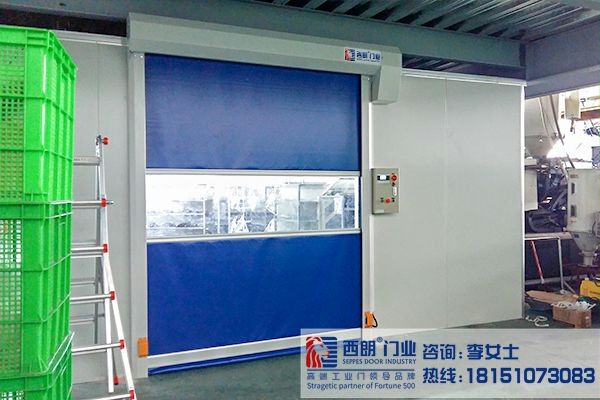

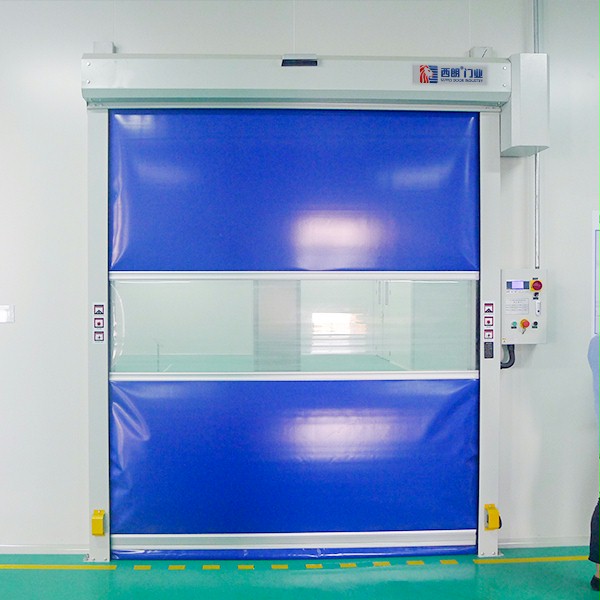

E-style intelligent fast rolling door
The 4th generation fast rolling door uses intelligent control chiip to realize auto-control which is more stable, more reliable and more energy-efficient
E-style intelligent fast rolling door is the 4th generation fast door. It equips with integrated-high intelligent control system which is international leading technology standard. The door also equips with visual machine interface to realize the man-machine real time communication. The Chinese and English communication windows can be used both in Chinese enterprise and overseas-funded enterprise. The original industrial aesthetics concept is introduced into the frame structure design, and also combined with laser precision manufactured. The door reflects the top level in structure design. We can guarantee that the device can run more than 150,000 times without error, about 1000 times one day, in addition, we can offer you a one year warranty.。
Unique c , avoid transformation from energy loss, it is more smooth than you think.
Cyclo limit is one of the Serang main technologies, the minimum diversionary error and the maxium precision.
Human-manchine interface system
SERANG has the Human-machine interface system, which can increase the operational service and maintain convenience.
Frequency conversoin control system
One controller in one door, makes every door stronger and faster.
main frame is made from 2.00 mm galvanized steel which is sprayed by special technology. So it has strong weather ability.
- We are also can provide you with aluminium alloy frame (would be customized)
- asynchronous machine and frequency converter are in our control system
- Hign brightness human-machine interface LED screen
- Unique non-contact pointer limit, avoid limit error from magnetic field
- Standard,operational and low maintaining cost
- 150,000 times per year, or 500 times per day running without any mechanical error
Control system: Autonomous microcomputer controllers, “plug and play” design, reduce repairing cost in the future.
Frequency terminal buffer function: 0.3s Reaction time to electrical error.
Face to face windows：Showing various error codes and working conditions, which is easier for daily maintenance.
Motor：profession High frequency start-stop motor，High efficiency，strong braking torque，long using lifing
Limitation device：Non-contact pointer limitation non-accumulative errors, resistance of electromagnetic interference.
Power requirement：220V/13A/ONE-WAY/50 HZZ
Curtain material ：PVC wearing-resisting fabric, T: 0.8-1.0mm, high wearing coefficient
Flame retardant grade：Class 2
Transparent window：Can be customized in advance
Wind rib：Aluminum wind resistance rib
Windproof ability：Class6, can be enhance to class 8 in advance
Opening speed ：0.6-1.2m/s
Closing speed ：0.6m/s or lower
Switching frequency：Over 500 times per day, over 150,000 times per years
Seal ability： Sealing row brushes in both tracks
