|Component||Configuration parameter||Component||Configuration parameter|
|Production specifications||W=600mm-4500mm, H=900mm-5000mm.||Power requirements||220-380V/13A/single-phase-three-phase/50HZ; optional emergency reserve power supply; the wrench can open the door in the event of a power failure.|
|Door frame||The door frame is made of Baosteel’s 2.0mm cold-rolled steel plate, and the laser components are cut and folded by the imported plastic powder electrostatic spraying. It will not fade and paint for 10 years.||Curtain material||High-strength polyester fiber wear-resistant base fabric, 0.9-1.2mm; flame retardant grade is Class 2; self-cleaning on both sides.|

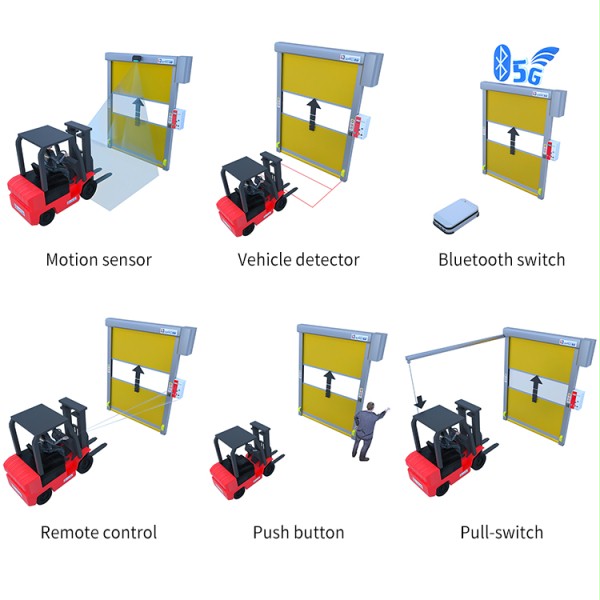

|Control System||FROG PUPIL (Germany Fei Ruipu) integrated high-intelligence control system to realize man-machine dialogue; multi-turn absolute encoder; slow start and slow stop.||Switch way||Standard button box. Optional: Radar induction / geomagnetic ring induction / wireless switch / remote opening / access control password and other methods.|
|Safety performance||Standard infrared safety photoelectric; optional bottom airbag, safety light curtain. Working temperature is -40℃-80℃.||Sealing performance||
The track adopts a double-row brush seal structure with a card-type base, which is more effective against insects and dust. It is plug and play for easy maintenance and does not damage the curtain.
|Wind resistance||Under normal environment, it can resist wind of grade 6; strengthen it to resist wind of grade 8, but you need to make an appointment with the sales staff to explain.||Transparent window||There is no remarks. Conventional doors are made of transparent PVC with a thickness of 1.2mm and conventional 600mm windows.|
